High and low pressure Fire Hose with Storz & Nakajima Fire Hose Coupling GR manufacturer from China Chong Qing Gathering Marine Equipment co., Ltd.

High and low pressure Fire Hose with Storz & Nakajima Fire Hose Coupling

Price:	1.0~10.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GR

Production Capacity: 10000 meters/month

Delivery Date: 15 days

Diameter: 65mm

Hose Coupling Type: STORZ & Nakajima

Fire Hose Length: 25M

Inlet: Flage/ Screw Thread

Means of Transport: Ocean

Packing: wooden case

Brand Name: Gathering

Material: Pve PU PE

Lining: With Lining

Fire Hose Manifold Type: 2 Water Segregator

Lining material: Rubber, Mylar, Double-sided Rubber
Approval: CCS/EC
PVC/ Rubber/ PU Lining
High pressure resistance, low temperature resistance

Durable Fire Hose with Storz & Nakajima Fire Hose Coupling

Lining material: Rubber, Mylar, Double-sided Rubber

Size: DN40, DN50, DN65

Single-sided lining weight: 146~294g per metre
Double-sided rubber weight: 230~420g per metre
Approval: CCS/EC

Non corrosion-proof
Flame retardant

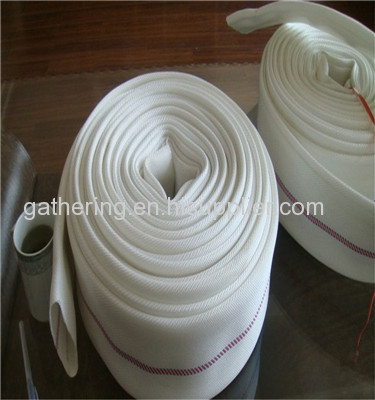

Fire Hose
1)PVC/ Rubber/ PU Lining
2)The jacket of fire hose is wove by high intensity of polyester filament or polyester short-fiber( twill/plain weave)
3)There are special adhesive ( solid or liquid)between the jacket and the hose. The hose is soft and highly polished, reduce the flow resistance
4) Thinner and more soft, lighter and more convenient to use.
5) High pressure resistance, low temperature resistance, anti-corrosion. Aging resistance. Wear-resisting
6) We can provide different color lining: Blue, black, transparent, etc or according to your requirement
7) We can provide length: 10m - 40m or according to your requirement

Diameter (Inch/mm)	Working Pressure (MPa/BAR/PSI)	Testing Pressure (MPa/BAR/PSI)	Bursting Pressure (MPa/BAR/PSI)	Length (M/FEET)
1 25	1.0/10/150 1.3/13/195 1.6/16/240 2.0/20/300	1.5/15/220 2.0/20/300 2.4/24/360 3.0/30/450	3.0/30/450 3.9/39/580 4.8/48/720 6.0/60/900	10 15/50 20 25 30/100
1-1/2 40
2 50
2-1/2 65
3 80
3-1/2 90
4 100
4-1/2 115
5 125
5-1/2 140
6 150
