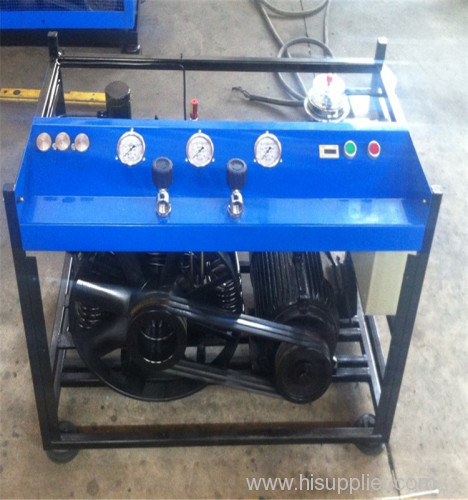

Portable 30Mpa High Pressure Electric Air Compressor

Brief Introduction:

LYX high pressure air compressor is 3-stage compression and air cooled compressor. It compresses free air to max pressure 30Mpa and cleans out oil, vapor and impurity by activated carbon and 13X molecular sieves. The outlet air accords to GB18435-2001 diving breathing air standard. It is a reliable machine to provide breathing air and other high pressure air application. It is widely used for breathing in firefighting, diving, and testing in air-tight industry.

Features:

4-stage, air-cooling piston reciprocating
Oil splash lubrication
Stainless steel inter-cooler and after cooler
Specially treated alloy cylinder, piston and piston ring
High-strength nylon cooling fan assembly
Manual condensate drain knobs
Intake filter
Anti-shock floor mat
Anti-shock pressure gauge
Safety valves protection for every stage
High temperature resistance plastic powder coating steel frame and base
Activated carbon, monocular sieve for air purification in the filter
Filters are made by seamless aluminum alloy and bears 550bar pressure
1 Filling hose and filling valve
Consumables and manuals are provided with every compressor
1 year warranty

Models:

Model	Operating pressure	Drive	Delivery rate	Power	Dimension	N. weight	Noise level
LYX100C	300BAR	Honda engine	100L/min	5.5Hp	74*32*41	43 kg	<79 dB(A)
LYX100A	300BAR	three-phase motor	100L/min	3kw	60*38*41	44 kg	<78 dB(A)
LYX100B	300BAR	single-phase motor	100L/min	2.2kw	60*38*41	45 kg	<78 dB(A)

Also we can provide air compressor for natural gas, SCBA etc. Any need, pls feel free to contact me.
